Canon GPR-22

Canon's compact imageRUNNER 1018–1025 machines run on the Canon GPR-22 (0386B003AA) black toner — and on a second part that is easy to overlook: the 0388B003AA drum unit. Toner and drum are separate in this family. The toner empties and is swapped regularly; the drum forms the image and is changed only occasionally, on its own cycle. Both parts are listed on this page, the toner as a single, a 3 Pack and two 5 Pack options.
These are the small-footprint copiers that end up in branch offices, reception areas and classrooms — places with no IT cupboard and no facilities team. Nineteen model names belong to the family, most of them letter variants of the 1022, 1023, 1024 and 1025, and every one of them takes the same toner and the same drum.
GPR-22 Toner Cartridges and Drum Unit
| Cartridge | Color | Page Yield |
|---|---|---|
| 0386B003AA — Compatible Toner Cartridge, Single | Black | See product page |
| 0386B003AA — Compatible Toner Cartridges, 3 Pack | Black | See product page |

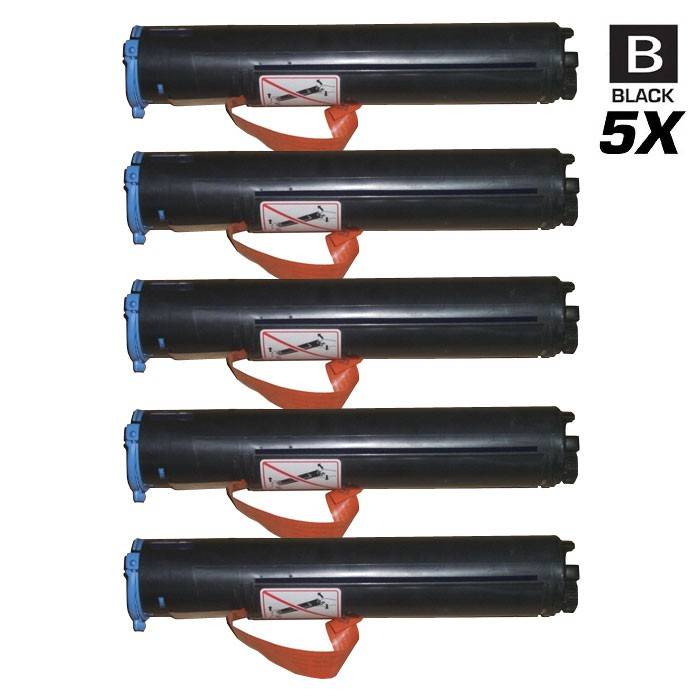

| 0386B003AA — Compatible Toner Cartridges, 5 Pack | Black | See product page |
| 0386B003AA — Premium Quality Toner Cartridges, 5 Pack | Black | See product page |
| 0388B003AA — Compatible Drum Unit, Single | Black | See product page |
The matching drum unit for this family:
- 0388B003AA — Compatible Drum Unit Cartridge, Black
Buying the toner and drum as a pair — but not at the same time
Think of the two parts on different clocks. The 0386B003AA toner is the routine order: a single for a quiet machine, the 3 Pack for one in daily use, a 5 Pack — standard or Premium Quality — where several of these copiers share one cupboard. The 0388B003AA drum should only be ordered when the machine's image quality slips in a way a fresh toner does not fix, because a healthy drum keeps working through many toner changes. Both parts are covered by a 1-year warranty and 1-year returns.
Living with a two-part supply system
The practical habit for this family is a labeled shelf: toner in front, one drum behind it, so whoever changes supplies grabs the right box. Drums are light-sensitive, so the drum stays sealed until fitting day. When print comes out faint, try the toner first — remove it, rock it gently to redistribute what is left, and only suspect the drum if a brand-new cartridge prints the same way.
Other compact mono families live on their own code pages: GPR-10 for the imageRUNNER 1210–1670F copiers and GPR-18 for the imageRUNNER 2016–2030 range.
Frequently Asked Questions
Does the 0388B003AA drum come inside the GPR-22 toner 3 Pack?
No. The packs on this page contain only 0386B003AA toner cartridges. The 0388B003AA drum is a separate single item, listed under its own row above, and it is ordered on its own much longer cycle.
How can I tell whether the toner or the drum needs replacing?
Light or patchy print that improves with a fresh cartridge was the toner. Marks, streaks or a shaded background that look identical after a toner swap point to the 0388B003AA drum. Toner first is always the cheaper test.
Do the 1022, 1023, 1024 and 1025 variants all use the same supplies?
Yes — all nineteen models in the list below, including the A, F, i, IF, j and N variants, take the 0386B003AA toner and the same drum. The variant letters came from factory configuration options, not from different cartridge bays.
What is the Premium Quality 5 Pack in this family?
It is the premium line of the 0386B003AA cartridge, boxed five at a time. The standard 5 Pack holds the regular compatible line. Both fit the same machines and carry the same 1-year warranty.
Printers that use GPR-22
The GPR-22 toner and drum serve the following Canon imageRUNNER models:
ImageRunner 1023, ImageRunner 1025IF, ImageRunner 1023IF, ImageRunner 1025N, ImageRunner 1023N, ImageRunner 1025, ImageRunner 1018, ImageRunner 1018J, ImageRunner 1019, ImageRunner 1022, ImageRunner 1022A, ImageRunner 1022F, ImageRunner 1022I, ImageRunner 1024, ImageRunner 1024F, ImageRunner 1024IF, ImageRunner 1022IF, ImageRunner 1024A, ImageRunner 1024I
